3. Custom Layer

Submitted by Mirjana on Thu, 04/21/2011 - 02:40

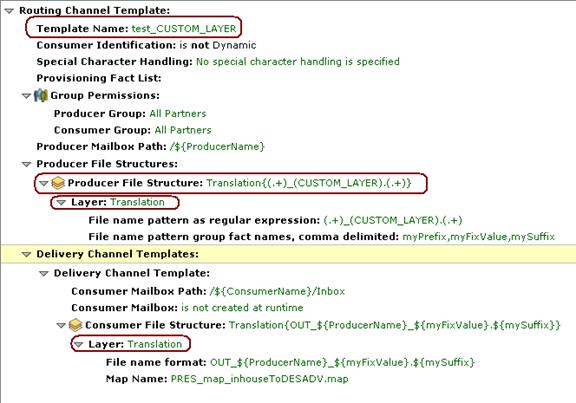

Routing Channel Template for CUSTOM LAYER

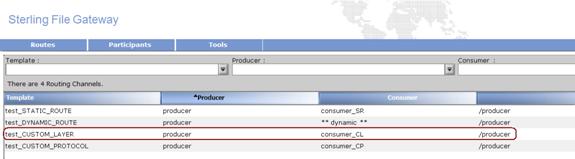

Routing Channel for CUSTOM LAYER

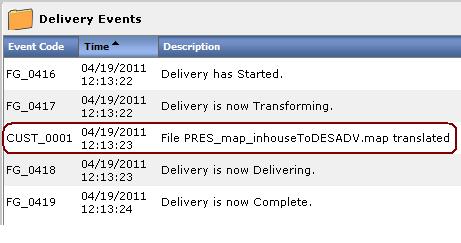

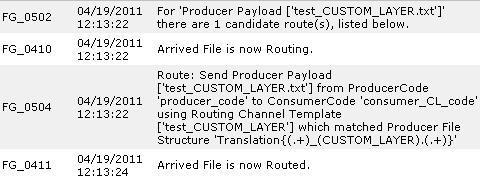

File test_CUSTOM_LAYER.txt is uploaded to 'producer' MBX, and we can see arrived, route and delivery events in the following screenshots for the custom layer that routes a message from producer's MBX to consumer's one based on route, and also that runs a BP while routing.
Note: File in a consumer's MBX (consumer_CL) is translated one!!!

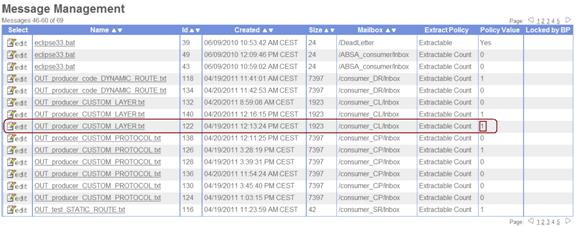

Message is placed into consumenr’s MBX (consumer_CL) with extractability 1, and as such can be seen in MyFileGateway


MyFileGateway for consumer_CL


Error in a BP, VDC_SFG_translation, during Customer Layer

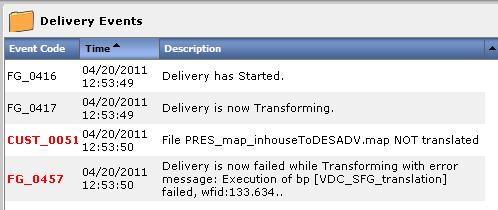

Error in Filegateway

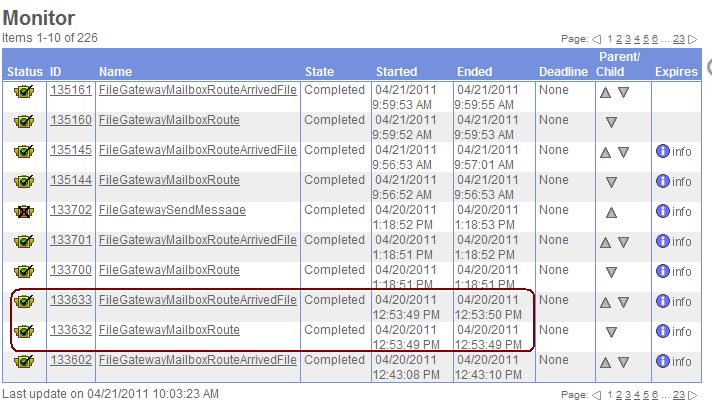

Error in Dashboard, BP Monitor
